OM5 Multimode Fiber Optic Network Cable , 50/125 Duplex Purple Fibre Patch Leads

Brand Name : TTI

Model Number : OM5

Certification : CE/ISO9001

Place of Origin : Shenzhen ,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 2000m/day

Delivery Time : 2-3 working days

Packaging Details : PE

Product name : Fiber optical patch cord

Item No. : OM5

Connector : LC

Polish : UPC

Core type : Multimode

Cable quantity : duplex

Package : PE

Length : Customized

Jacket : LSZH

Warranty : 5 years

Contact Now

OM5 Multimode Fiber Optic Patch Cord 50/125 Duplex Purple Optical Cable

a:Feature

1) Low insertion loss high return loss

2)Excellent mechanical endurance

3)High credibility and stability

4)Good in repeatability and exchangeability

b: Application

1) Fiber optic communication networks

2) Optical access network

3) Data processing networks

4)Premise installations

c:Specification

Connector Type	FC,SC,LC,ST,MU,MTRJ,MPO
Fiber Type	SM(G.652D/G.657A)			MM(OM1/OM2/OM3/OM4)
Ferrule End-face	PC	UPC	APC	PC
Insertion loss	≤0.3db	≤0.3db	≤0.3db	≤0.3db
Return loss	≥45db	≥50db	≥60db	≥35db
Exchangeability	≤0.2db
Repeatability	≤0.1db(1000times)
Durability	>1000times
Operating Temperature (℃)

FIber Type	Min.Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500MHz/KM	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0db/km
50/125	850/1300nm 500/500MHz/KM	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0db/km
50/125 10Gig Optimized	850/1300nm 2000/500MHz/KM	@100Gig Varies by VCSEL typical 300m2850nm	850/1300nm 3.0/1.0db/km
9/125	1310/1550nm Approx100Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3db/km

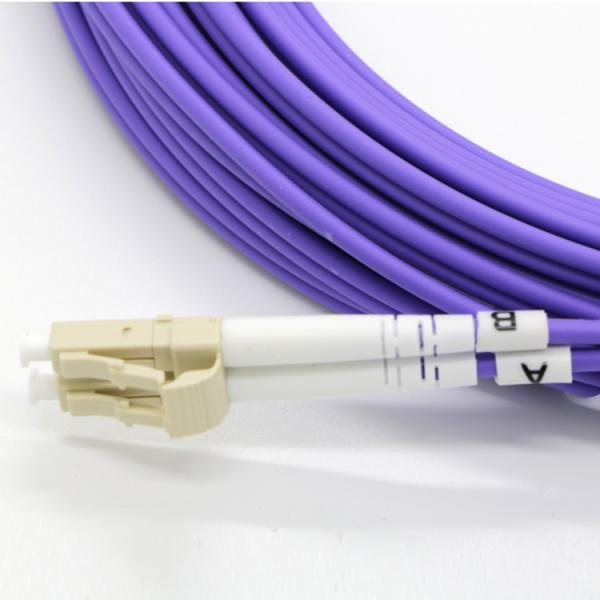

d: Product pictures

OM5 Multimode Fiber Optic Network Cable , 50/125 Duplex Purple Fibre Patch Leads
