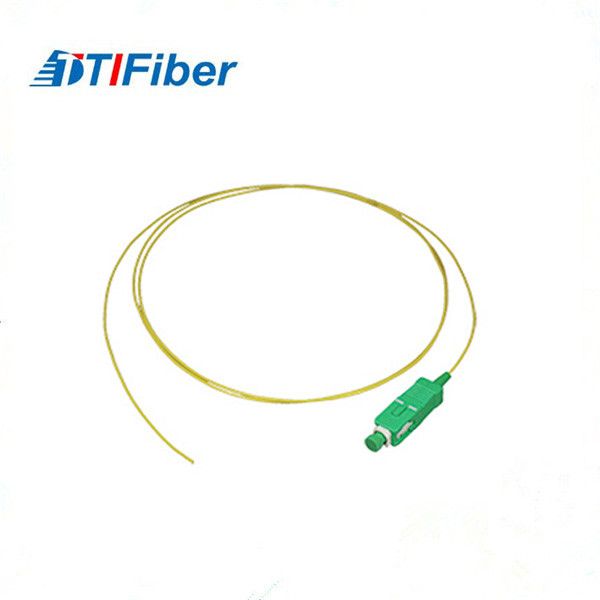

0.9mm SM G652D G657A SC/APC SC/UPC Fiber Optic Pigtail PVC/LSZH 1M/1.5M/3M
Quick Detail:
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
- Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
- Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
- Cable length: 1m, 2m, 3m, 5m....customized
- Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.
Features:
- 100% test before shipment
- Low insertion loss and high return loss
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- Serialized & Individual Test Records
- Meets ROHS and Bell core GR 326-core standards
Applications:
- FTTH application
- Premise installations
- Data processing networks
- Wide Area Networks (WANs)
- Industrial ,mechanical and military
Specification:
| Parameter | Single Mode | Multi Mode |
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO |
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A |
| Fiber Under Cut | ≤100nm | ≤100nm | N/A |
| Apex offset | ≤50um |
| Mechanical | Exchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Drop | ≤0.2dB(1.5M, 5 drops) |
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) |
| Repeatability | ≤ 0.1dB(1000 times) |
| Durability | > 1000 times |
| Operating Temperature | -40°C ~ +85°C |
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
